1. General Description

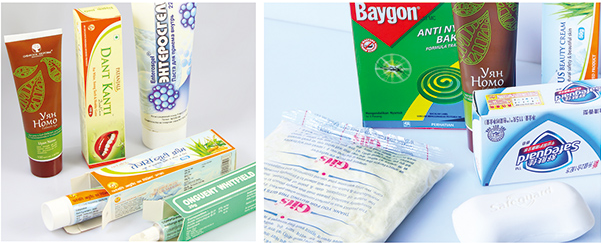

This machine is high technology product incorporates of pneumatic-photo-electro-mechanic. It is suitable for inserting tube, pillow wrapped products, pharmaceutical products and food similar package into carton in a range. The machine finishes running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes canton suction and open, products put into, printing batch number, sealing carton with tuck-in or hot melt glue device.
2. Technical Data
Weight & Dimensions
Output & Speed
Unfold Leaflet (optional)
Carton
Utilities
3. Functions and Options
The cartoning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum
No suction carton by missing product
No suction carton by missing leaflet
Product will be manually loaded on conveyer by manual ,then other things finished automaticlly.
Automatically displaying device for trouble, speed and finished products counting
Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
Adopt human-machine operation system.
International famous brand of electric components such for PLC touch screen, frequency inverters, etc
Stable performance, operation is easy Controls Sensors
Product presence detection sensor
Leaflet presence detection sensor
Carton present detection sensor

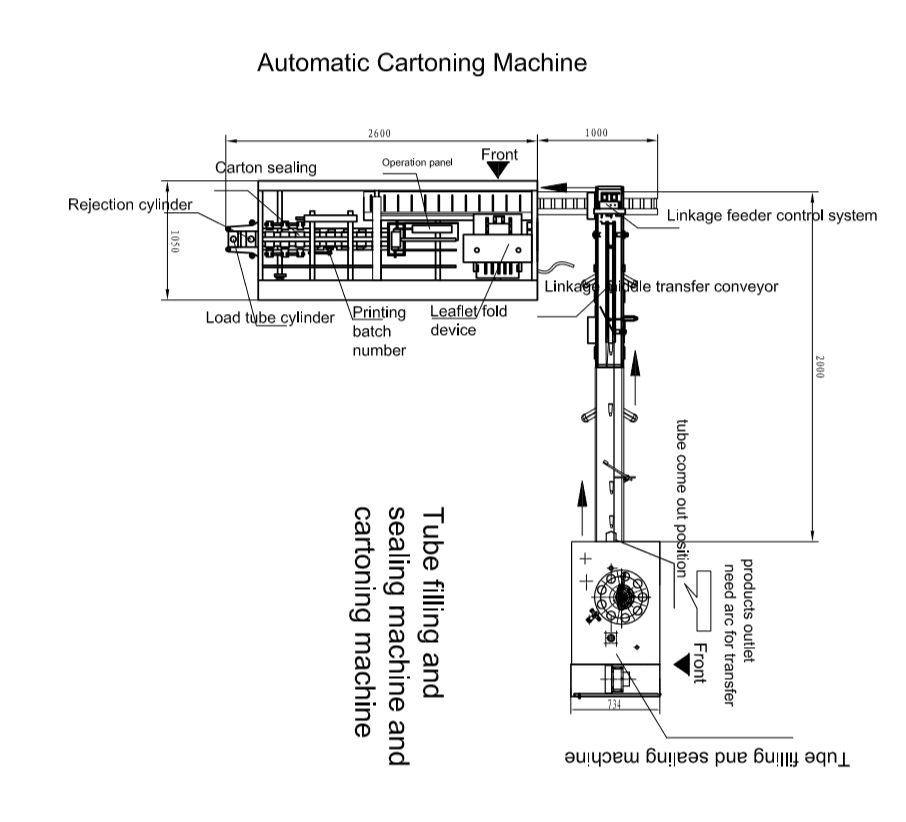

4.Working principle drawing
